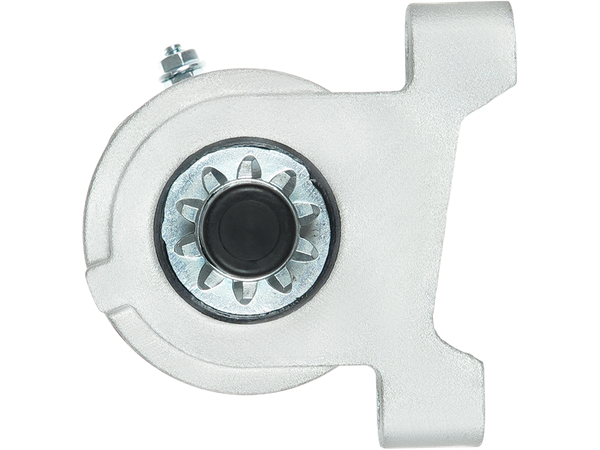

S9285S
Startmotorer
STANDARD LINE
465 kr
Köp nu
| EAN | 5902129049852 |
| Tillverkare | AS-PL |
| Ersätter | BRIGGS STRATTON |
| OE-nummer |
3EFFE: STRS453 AS-PL: S9285S, UD03131S, UD13662S BOSCH: F04200D006 CARGO: 112566, F032112566 DIXIE: 20607119 ELECTROLOG: STRX745 KRAUF: STZ0212 KUHNER: 255126 MEAT & DORIA: 5072551 PSH: 400.073.102.200, 400.073.102.440, S132.108 TECUMSEH: 36914, 37425 WAI / TRANSPO: 2-2266, 5747N WOODAUTO: STR88303 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.50 |
| Startmotors rotation | ACW |
| B-storlek [ mm ] | 32.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 190.00 |
| O.1 [ mm ] | 86.00 |
| C.1 [ mm ] | 8.50 |
| C.2 [ mm ] | 8.50 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TECUMSEH | Engine | OHV110 | 0 | – | ||
| TECUMSEH | Engine | OHV130 | 0 | – | ||
| TECUMSEH | Engine | OHH50 | 0 | – | ||
| TECUMSEH | Engine | OHV120 | 0 | – | ||
| TECUMSEH | Engine | OHV135 | 0 | – | ||
| TECUMSEH | Engine | OH50 | 0 | – |
