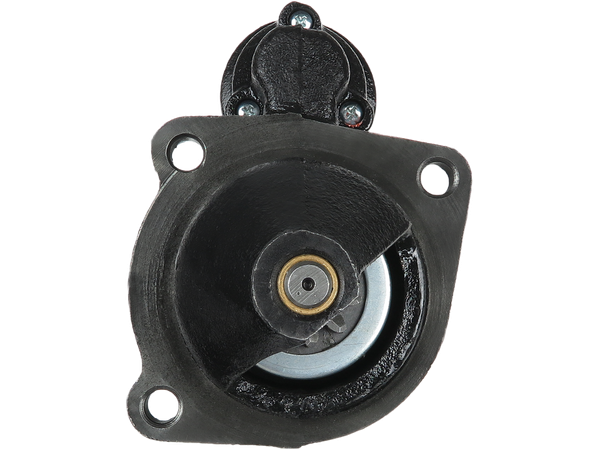

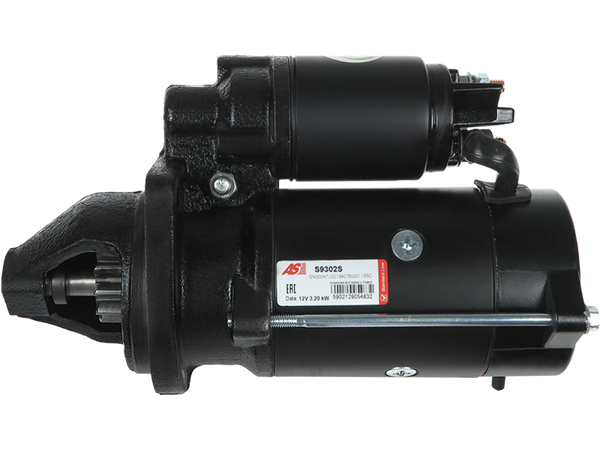

S9302S
Startmotorer
STANDARD LINE
1431 kr
Köp nu
| EAN | 5902129054832 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | AZE4214 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 29.50 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 277.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 43 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 1394 | 4-219D | 0 | 1983–1988 | ||
| CASE IH | 1494 | 4-219D | 0 | 1983–1988 | ||
| CASE IH | 1494 2WD | 0 | 1984–1987 | |||
| CASE IH | 1594 2WD | 0 | 1984–1988 | |||
| CASE IH | 1690 2WD | 0 | 1984–1985 | |||
| CASE IH | 1690 4WD | 0 | 1984–1985 | |||
| CASE IH | 1694 | 0 | 1984–1987 | |||
| CASE IH | 2094 | 0 | 1984–1987 | |||
| CASE IH | 2294 | 0 | 1984–1987 | |||
| CASE IH | 2394 | 0 | 1984–1987 | |||
| LANDINI | 100 | GLOBALFARM | 1104D-44T | 93 | 2007– | |
| LANDINI | 100, 105 | VISION | 1104D-44TA | 93-102 | 2008– | |
| LANDINI | 100, 110 | POWERFARM | 1104D-44TA | 92-102 | 2003– | |
| LANDINI | 105 | GLOBALFARM | 1104D-44T | 99 | 2007– | |
| LANDINI | 105 | VISION | 1104C-44T | 99 | 2004– | |
| LANDINI | 75 | TECHNOFARM | 1104C-44 | 68 | 2009– | |
| LANDINI | 80 | TECHNOFARM | 1104D-44 | 74 | 2009– | |
| LANDINI | 85, 95 | VISION | 1104C-44T | 82-92 | 2004– | |
| LANDINI | 85, 95 | VISION | 1104C-44 | 82-92 | 2004– | |
| LANDINI | 85, 95 | VISION | 1104D-44T | 82-92 | 2004– | |
| MASSEY FERGUSON | MF 290 | 0 | – | |||
| MCCORMICK | 100 F | F Series | 1104D-44TA | 93 | 2009– | |
| MCCORMICK | 100 GE | F Series | 1104D-44TA | 93 | 2009– | |
| MCCORMICK | 100 XL | F Series | 1104D-44TA | 93 | 2009– | |
| MCCORMICK | 110 F | F Series | 1104D-44TA | 102 | 2009– | |
| MCCORMICK | 110 GE | F Series | 1104D-44TA | 102 | 2009– | |
| MCCORMICK | 110 XL | F Series | 1104D-44TA | 102 | 2009– | |
| MCCORMICK | 80 F | F Series | 1104D-44 | 74 | 2009– | |
| MCCORMICK | 80 GE | F Series | 1104D-44 | 74 | 2009– | |
| MCCORMICK | 80 XL | F Series | 1104D-44 | 74 | 2009– | |
| MCCORMICK | 90 F | F Series | 1104D-44T | 83 | 2009– | |
| MCCORMICK | 90 GE | F Series | 1104D-44T | 83 | 2009– | |
| MCCORMICK | 90 V | V/FN Series | 1104D-44T | 83 | 2011– | |
| MCCORMICK | 90 XL | F Series | 1104D-44T | 83 | 2009– | |
| MCCORMICK | C 100 MAX | C-Max Series | 1104D-44TA | 92 | 2005– | |
| MCCORMICK | C 110 MAX | C-Max Series | 1104D-44TA | 102 | 2005– | |
| MCCORMICK | C 70 L | C-L Series | 1103D-33TA | 68 | 2009– | |
| MCCORMICK | C 80 LC | C-L Series | 1104D-44 | 74 | 2009– | |
| MCCORMICK | C 80 MAX, C 90 MAX | C-Max Series | 1104D-44T | 74-83 | 2005– | |
| MCCORMICK | C 80 MAX, C 90 MAX | C-Max Series | 1104D-44 | 74-83 | 2005– | |
| MCCORMICK | F 90 N | V/FN Series | 1104D-44T | 83 | 2011– | |
| PERKINS | 4.0 | Engine | 1004-42 | 0 | – | |
| PERKINS | 4.0 | Engine | 1004-40 | 0 | – |
