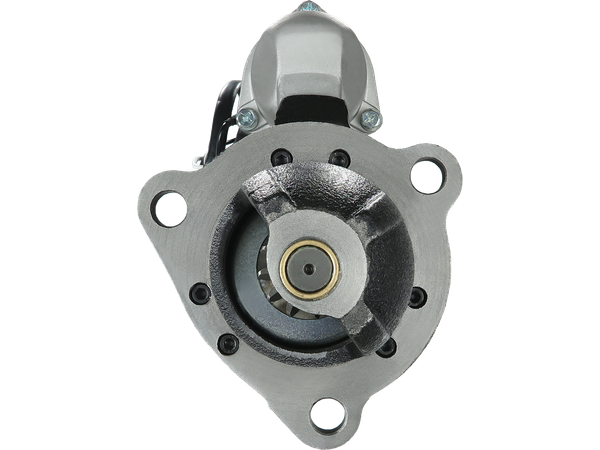

S9446S
Startmotorer
STANDARD LINE
2682 kr
Köp nu
| EAN | 5902129149354 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer | 0-23000-3288 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 46.50 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 412.00 |
| O.1 [ mm ] | 126.00 |
| O.2 [ mm ] | 126.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 17.00 |
| C.2 [ mm ] | 17.00 |
| C.3 [ mm ] | 17.00 |
Passar i 39 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | D85EASS-2A | S6D125-1 | 0 | 2000–2000 | ||
| KOMATSU | GD605A-5 | 6D125-1 | 0 | 2000–2010 | ||
| KOMATSU | GD705A-4A | S6D125-1 | 0 | 2000–2010 | ||
| KOMATSU | 11.0 | D53-17 | 6D125 | 0 | 1995–1999 | |
| KOMATSU | 11.0 | D53A-17 | 6D125 | 0 | 1984–1989 | |
| KOMATSU | 11.0 | D53A-17 | 6D125E | 0 | 1984–1989 | |
| KOMATSU | 11.0 | D53A-18 | 6D125 | 0 | 1991–2000 | |
| KOMATSU | 11.0 | D53P-17 | 6D125E | 0 | 1984–1991 | |
| KOMATSU | 11.0 | D53P-18 | 6D125 | 0 | 1991–2000 | |
| KOMATSU | 11.0 | D58E-1 | 6D125E | 0 | 1986–2002 | |
| KOMATSU | 11.0 | D58E-1 | 6D125 | 0 | 1986–2002 | |
| KOMATSU | 11.0 | D58E-1B | 6D125E | 0 | 1986–2002 | |
| KOMATSU | 11.0 | D58P-1 | 6D125 | 0 | 1987–2001 | |
| KOMATSU | 11.0 | D58P-1 | 6D125E | 0 | 1987–2001 | |
| KOMATSU | 11.0 | D58P-1B | 6D125E | 0 | 1987–2001 | |
| KOMATSU | 11.0 | D60P-12 | S6D125 | 0 | 1991–1995 | |
| KOMATSU | 11.0 | D60P-12-E | S6D125E | 0 | 1996–2003 | |
| KOMATSU | 11.0 | D65E | 6D125 | 0 | 1994–1997 | |
| KOMATSU | 11.0 | D65E-12 | 6D125 | 0 | 1993–2003 | |
| KOMATSU | 11.0 | D65EX-12 | S6D125 | 0 | 1993–1997 | |
| KOMATSU | 11.0 | D65EX-12 | S6D125E | 0 | 1995–2003 | |
| KOMATSU | 11.0 | D65P-12 | S6D125E | 0 | 1993–2003 | |
| KOMATSU | 11.0 | D65P-8 | S6D125 | 0 | 2000–2000 | |
| KOMATSU | 11.0 | D65PX-12 | S6D125E | 0 | 1995–2003 | |
| KOMATSU | 11.0 | D65PX-12 | S6D125 | 0 | 1993–1995 | |
| KOMATSU | 11.0 | D70LE-12 | 6D125 | 0 | 2000–2000 | |
| KOMATSU | 11.0 | D70LE-12 | 6D125E | 0 | 2000–2000 | |
| KOMATSU | 11.0 | D75S-5 | S6D125 | 0 | 1984–2004 | |
| KOMATSU | 11.0 | D85ESS-2A | S6D125E | 0 | 2008–2012 | |
| KOMATSU | 8.3 | D61E-12 | S6D114E | 0 | 2000–2002 | |
| KOMATSU | 8.3 | D61EX-12 | S6D114E | 0 | 2000–2007 | |
| KOMATSU | 8.3 | D61EX-12A | S6D114E | 0 | 2003–2007 | |
| KOMATSU | 8.3 | D61EX-15 | SA6D114E | 0 | 2004–2010 | |
| KOMATSU | 8.3 | D61P-12 | S6D114E | 0 | 2000–2002 | |
| KOMATSU | 8.3 | D61PX-12 | SA6D114E | 0 | 2003–2007 | |
| KOMATSU | 8.3 | D61PX-12 | S6D114E | 0 | 2003–2007 | |
| KOMATSU | 8.3 | D61PX-15 | SA6D114E | 0 | 2004–2010 | |
| MULTIQUIP | DCA-220SSK | S6D125E | 0 | 1997–2007 | ||
| MULTIQUIP | DCA-400SSK | SA6D125E-2 | 0 | 1997–2007 |
