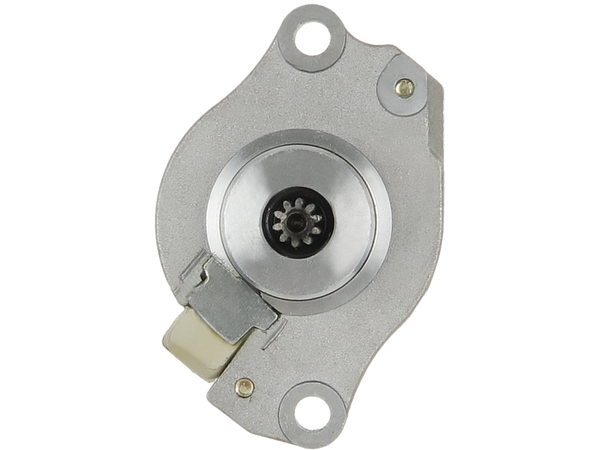

S9625S
Startmotorer
STANDARD LINE
168 kr
Köp nu
| EAN | 5902129221456 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBA |
| OE-nummer |
ALANKO: 10439190 APRILIA: AP8206459, AP8206805, AP8224103 AS-PL: UD19009S FARCOM: 108753 WAI / TRANSPO: 18749N YAMAHA: 3AA-81800-00-00, 3AA-81800-02-00, 3FC-81800-00-00, 3FC-81800-01-00, 3FC-81800-10-00, 3GF-H1800-00-00, 3GF-H1800-10-00, 3KJ-81800-00-00, 3KJ-81800-01-00, 3YJ-81800-00-00, 3YJ-81800-01-00, 4CU-H1800-00-00, 4CU-H1800-01-00, 4CU-H1800-10-00, 4SB-H1800-00-00, 4SB-H1800-10-00, 4VV-H1800-00-00, 4VV-H1800-10-00, 5BM-818-00-00, 5BM-81800-00, 5BM-81800-01-00, 5SU-H1800-00-00, 5SU-H1800-10-00, 5WW-H1800-00-00, 5WW-H1800-10-00 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Startmotors rotation | ACW |
| B-storlek [ mm ] | 24.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 95.00 |
| O.1 [ mm ] | 63.50 |
| C.1 [ mm ] | 5.50 |
| C.2 [ mm ] | 5.50 |
Passar i 55 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| APRILIA | Amico 50 CatCon. (GC) | AMICO | 3 | Mixture | 1990–1994 | |
| APRILIA | Amico 50 GL CatCon. (HV) | AMICO | 3 | Mixture | 1993–1999 | |
| APRILIA | Amico 50 LX CatCon. (GC) | AMICO | 3 | Mixture | 1995–1996 | |
| APRILIA | Amico 50 Sport CatCon. (GC) | AMICO | 3 | Mixture | 1992–1993 | |
| APRILIA | Area 51 CatCon. (MY) | AREA | 4 | Mixture | 1998–2003 | |
| APRILIA | Area 51 Replica (MY) | AREA | 4 | Mixture | 2000–2003 | |
| APRILIA | Area 51 SBK CatCon. (MY) | AREA | 4 | Mixture | 2000–2002 | |
| APRILIA | Gulliver AC CatCon. (LH) | GULLIVER | 4 | Mixture | 1995–1998 | |
| APRILIA | Gulliver LC CatCon. (LH) | GULLIVER | 4 | Mixture | 1997–1999 | |
| APRILIA | MC Gulliver CatCon. (LH) | MC | 4 | Mixture | 1996–1999 | |
| APRILIA | Rally 50 (MD) | RALLY | 4 | Mixture | 1990–1996 | |
| APRILIA | Rally 50 (MD) | RALLY | 3 | Mixture | 1990–1996 | |
| APRILIA | Rally 50 AC CatCon. (MD) | RALLY | 4 | Mixture | 1995–2003 | |
| APRILIA | Rally 50 LC CatCon. (MD) | RALLY | 4 | Mixture | 1997–1998 | |
| APRILIA | SR 50 CatCon. (LB) | SR | 3 | Mixture | 1993–1997 | |
| APRILIA | SR 50 LC CatCon. (LB) | SR | 4 | Mixture | 1996–1997 | |
| APRILIA | SR 50 LC Ditech (RL) | SR | 5 | Mixture | 2001–2004 | |
| APRILIA | SR 50 LC Ditech Racing (RL) | SR | 3 | Mixture | 2001–2003 | |
| APRILIA | SR 50 LC Ditech Racing (RL) | SR | 4 | Mixture | 2001–2003 | |
| APRILIA | SR 50 LC Racing CatCon. (RL) | SR | 3 | Mixture | 1999–2001 | |
| APRILIA | SR 50 LC Sport CatCon. | SR | 4 | Mixture | 2000–2002 | |
| APRILIA | SR 50 LC Sport CatCon. (RL) | SR | 3 | Mixture | 2000–2002 | |
| APRILIA | SR 50 LC Sport Ditech (RL) | SR | 4 | Mixture | 2001–2003 | |
| APRILIA | SR 50 LC Sport Ditech (RL) | SR | 3 | Mixture | 2001–2003 | |
| APRILIA | SR 50 Netscaper CatCon. (MZ) | SR | 4 | Mixture | 1997–1998 | |
| APRILIA | SR 50 Stelth CatCon. (MZ) | SR | 4 | Mixture | 1997–1999 | |
| APRILIA | SR 50 WWW CatCon. (LY) | SR | 4 | Mixture | 1997–2002 | |
| APRILIA | Sonic AC CatCon. (PB) | SONIC | 3 | Mixture | 1998–2001 | |
| APRILIA | Sonic LC CatCon. (PB) | SONIC | 3 | Mixture | 1998–1999 | |
| APRILIA | Sonic LC CatCon. (PB) | SONIC | 4 | Mixture | 1998–1999 | |
| YAMAHA | Aerox 50 CatCon. (AEROX-R, YQ) | AEROX | 4 | Mixture | 1997–1999 | |
| YAMAHA | Aerox 50 Ultimate CatCon. (AEROX-R, YQ) | AEROX | 4 | Mixture | 1998–1999 | |
| YAMAHA | Axis 50 CatCon. (3UG) | AXIS | 4 | Mixture | 1995–1997 | |
| YAMAHA | Axis 50 CatCon. (5AK) | AXIS | 1 | Mixture | 1995–1998 | |
| YAMAHA | BW 50 | BWs | 3 | Mixture | 1993–1994 | |
| YAMAHA | BW 50 (4BX/4RD) | BWs | 5 | Mixture | 1991–1996 | |
| YAMAHA | BW 50 R (4BX/4RD) | BWs | 5 | Mixture | 1991–1996 | |
| YAMAHA | Breeze 50 CatCon. | BREEZE | 4 | Mixture | 1994–1998 | |
| YAMAHA | DT 50 M (2M4) | DT | 3 | Mixture | 1978–1983 | |
| YAMAHA | DT 50 MX (1NN) | DT | 4 | Mixture | 1986–1989 | |
| YAMAHA | DT 50 MX-S (102282, 2UM) | DT | 4 | Mixture | 1986–1989 | |
| YAMAHA | DT 50 R (3MN) | DT | 3 | Mixture | 1989–1998 | |
| YAMAHA | Jog R | JOG | 3 | Mixture | 2002–2005 | |
| YAMAHA | Jog R (SA22) | JOG | 2 | Mixture | 2006– | |
| YAMAHA | Jog RR | JOG | 4 | Mixture | 2002–2005 | |
| YAMAHA | Jog RR (SA22) | JOG | 3 | Mixture | 2006– | |
| YAMAHA | Neos 50 2T | NEOS | 3 | Mixture | 2004–2006 | |
| YAMAHA | Neos 50 2T (5AD) | NEOS | 3 | Mixture | 2007– | |
| YAMAHA | Neos 50 2T (SA15) | NEOS | 3 | Mixture | 2002–2003 | |
| YAMAHA | Neos 50 2T CatCon. | NEOS | 3 | Mixture | 1997–2007 | |
| YAMAHA | Neos 50 4T (5AD) | NEOS | 3 | Mixture | 2008– | |
| YAMAHA | Why 50 CatCon. | WHY | 3 | Mixture | 1999–2012 | |
| YAMAHA | Zest 50 (4FW) | ZEST | 3 | Mixture | 1993–1997 | |
| YAMAHA | Zest 50 CatCon. | ZEST | 4 | Mixture | 1994–1999 | |
| YAMAHA | Zest 80 (4MU) | ZEST | 7 | Mixture | 1994–1998 |
