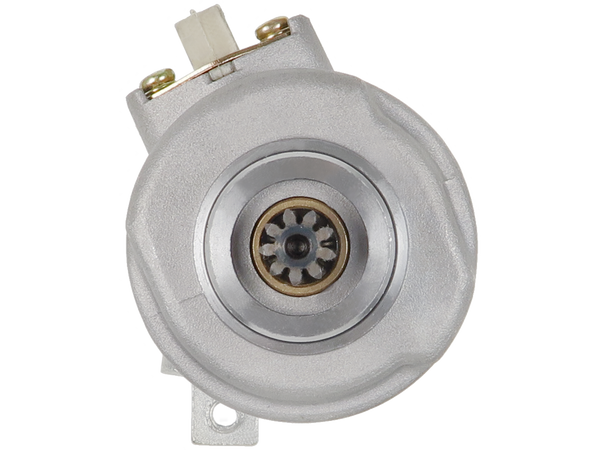

S9799S
Startmotorer
STANDARD LINE
173 kr
Köp nu
| EAN | 5902129232841 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBA |
| OE-nummer |
3EFFE: STRJ618 APRILIA: 0295620, 0295625, 0296390 ARROWHEAD: SCH0001 AS-PL: UD19033S AUTOTEAM: SMT134A BMW: 12407653350, 12407653356, 7653350, 7653356 CASCO: CST33134AS DIXIE: 210-06101 HONDA: 31200-KN7-671, 31200-KN7-672, 31200-KN7-674, 31200-KN7-676 ITAB AUTOMOTIVE: 10033134AV JUST PARTS: CH2-0012N KUHNER: 255800 LESTER: 19571 MITSUBA: SM142-43 PIC: 199-070 REAL: 20467431BN SANDO: 6033134.0 WAI / TRANSPO: 19571N WILSON: 71-38-19571 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.30 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 30.00 |
| B-storlek [ mm ] | 35.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 154.00 |
| O.1 [ mm ] | 37.50 |
| C.1 [ mm ] | 7.00 |
| C.2 [ mm ] | 7.00 |
Passar i 9 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| APRILIA | Leonardo 125 (MB) | LEONARDO | 12 | Petrol | 1996–2001 | |
| APRILIA | Leonardo 125 ST (TB) | LEONARDO | 12 | Mixture | 2002–2004 | |
| APRILIA | Leonardo 150 (MB) | LEONARDO | 14 | Petrol | 1997–2000 | |
| APRILIA | Scarabeo 125 (SD) | SCARABEO | 12 | Petrol | 2002–2002 | |
| APRILIA | Scarabeo 150 (PC) | SCARABEO | 10 | Petrol | 1999–2004 | |
| BMW | C 1 200 Basis (C1) | C1 | 18 | Petrol | 2000–2003 | |
| BMW | C 1 200 Familys Friend (C1) | C1 | 18 | Petrol | 2000–2003 | |
| MALAGUTI | Centro SL 50 | CENTRO | 3 | Mixture | 1999–2011 | |
| MALAGUTI | Centro SL 50 | CENTRO | 3 | Mixture | 1994–1997 |
