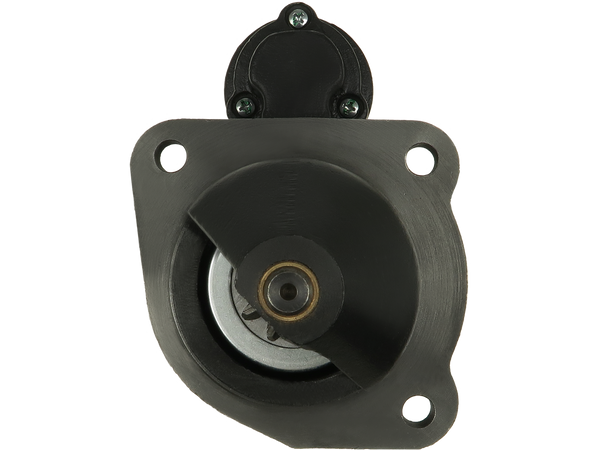

S9781S
Startmotorer
STANDARD LINE
1547 kr
Köp nu
| EAN | 5902129225591 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | IS1341 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 28.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 322.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 621D | 0 | 2003– | |||
| IRISBUS | 18, 18 NEO | CREALIS | 290 | 2009– | ||
| IVECO | 3.9 | Engine | 0 | – | ||
| NEW HOLLAND | E215B | 0 | 2007– | |||
| NEW HOLLAND | LW110B | 0 | 2005– | |||
| NEW HOLLAND | LW130B | 0 | 2005– |
