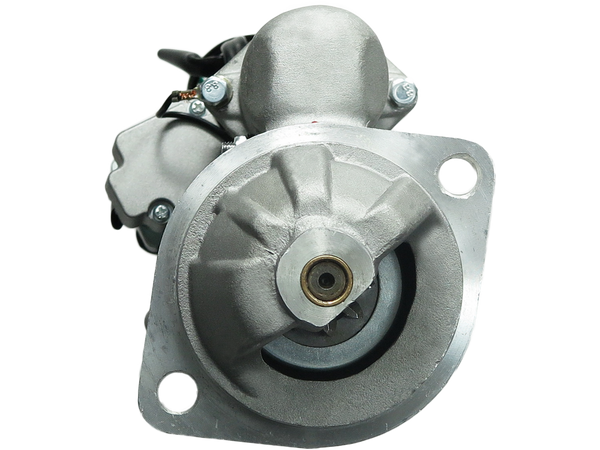

S9213
Startmotorer
STANDARD LINE
1347 kr
Köp nu
| EAN | 5902129010760 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
AS-PL: S9213, UD11087S CARGO: 111212, F032111212 CASCO: CST50607, CST50607AS, CST50607ES, CST50607GS, CST50607OS, CST50607RS, CST50608, CST50608AS, CST50608ES, CST50608GS, CST50608OS, CST50608RS DIXIE: S-8639A ELECTROLOG: STR8825 ISUZU: 5811000360, 5811001390, 5811001391, 5811001560, 5811001620 KOMATSU: 600-813-3111, 600-813-3121, 600-813-3122, 600-813-3130, 600-813-3171, 600-813-4000, 600-813-4410, 6008133110, 6008133170, 6008133171, 6008133172, 6008134241, 6008134411 NIKKO: 0-23000-0040, 0-23000-0041, 0-23000-0042, 0-23000-0050, 0-23000-0051, 0-23000-0052, 0-23000-0053, 0-23000-0060, 0-23000-0061, 0-23000-0062, 0-23000-0063, 0-23000-0330, 0-23000-0331, 0-23000-0332, 0-23000-0333 REAL: 20446706BN, 20446706OE SANDO: 6050607, 6050608 SIOM: MAV526070 WAI / TRANSPO: UNIT BOM 185-235 WILSON: 91-28-4046 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 2.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 330.00 |
| O.1 [ mm ] | 120.00 |
| C.1 [ mm ] | 13.00 |
| C.2 [ mm ] | 13.00 |
Passar i 5 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | PC60 | 4D95 | 0 | 1988– | ||
| VOLVO | FH 16/750 | FH16 | D16G750 | 749 | 2012– | |
| VOLVO | FH 16/750 | FH16 II | D16G750 | 750-751 | 2012– | |
| VOLVO | FH 16/750 | FH16 II | D16G750 | 749 | 2012– | |
| VOLVO | FH 16/750 | FH16 II | D16G750 | 750 | 2012– |
