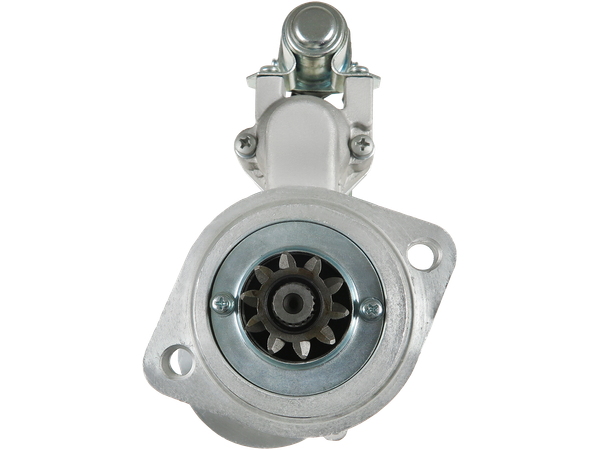

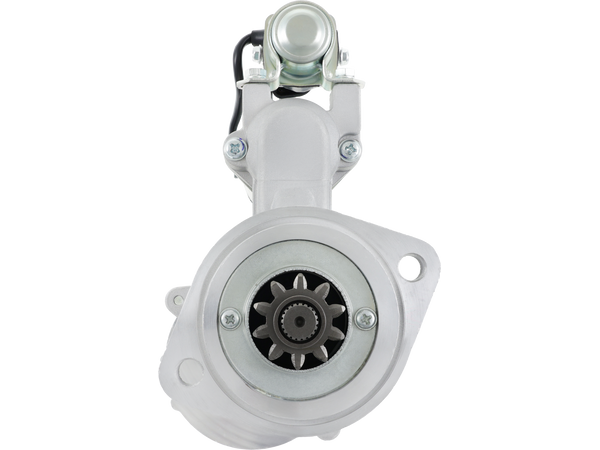

S5196
Startmotorer
STANDARD LINE
1345 kr
Köp nu
| EAN | 5902129010777 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: STRS648 AINDE: CGB-23102 AS-PL: S5196, UD11144S ASHIKA: 003-C969 AUTO MAGNETO: AM-2816 CARGO: 112323, F032112323 CASCO: CST35602, CST35602AS, CST35602ES, CST35602GS, CST35602OS, CST35602RS CATERPILLAR: 0R1091, OR1091 DIXIE: 243-25201, S-8842 ELECTROLOG: STR5046 ELSTOCK: 45-2090 JAPANPARTS: MTC969 JAPKO: 3C969 KUHNER: 254038 LOGISTIK: 336219 LUCAS: LRS01889, LRS1889 MITSUBISHI: 2476620900, 3436610100, 3436610901, 3436610903, 3436620100, 3436620900, 3436620901, M003T56174, M003T56181, M003T56182, M003T56183, M3T56172, M3T56174, M3T56181, M3T56182, M3T56183 NISSAN: 34366-00101, 34766-10903, 34766-20900, 34766-20901 REAL: 20437206BN SANDO: 6035602 SIDAT: S24MH0033A2 SIOM: MAV376020 WILSON: 91-27-3205 WOODAUTO: STR28015 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.0 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.00 |
| B-storlek [ mm ] | 22.50 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 289.00 |
| O.1 [ mm ] | 105.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
Passar i 10 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | Various Models | 0 | 1983– | |||
| MITSUBISHI | FD 20 | 0 | 1983– | |||
| MITSUBISHI | FD25 | 0 | 1983–1991 | |||
| MITSUBISHI | FD30 | 0 | 1983– | |||
| MITSUBISHI | FD35 | 0 | – | |||
| MITSUBISHI | Various Models | 0 | 1986–1987 | |||
| VOLVO | B12 | B12 | TD122FH | 356 | 1992– | |
| VOLVO | B12 | B12 | D12A420 | 420 | 1992– | |
| VOLVO | B12 | B12 | TD123ES | 396-405 | 1992– | |
| VOLVO | B12 | B12 | TD122FL | 396-405 | 1992– |
